RDS2 Integration Guide <=5.0 (Depreciated)

Created by Noel Caverly, Modified on Mon, 6 Jan at 6:55 PM by Noel Caverly

RDS2 Integration Quickstart

Unless you are using RDS2 software 5.1 or higher, use RDS2 Integration Quickstart 5.1.

Physical Connection

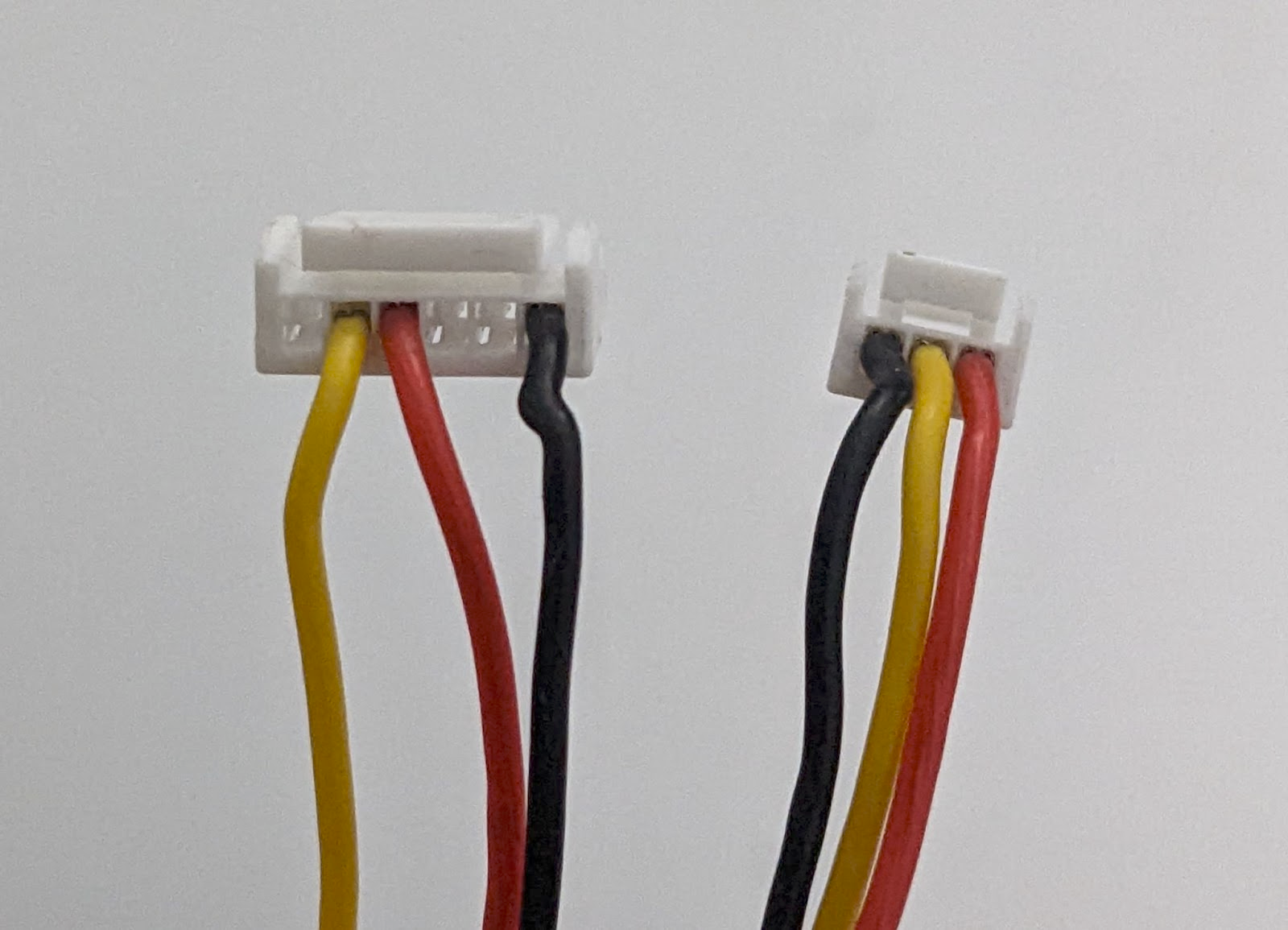

Connect the 3-pin "Drone" port on the winch board to a telemetry port (telem1 or telem2) on your flight controller. An image of the particular connections are shown

Flight Controller Parameters:

Configure the port you used as a MAVLink2 port, and ensure the baudrate matches the winch (which by default uses 115200). Parameters can be changed by connecting the vehicle to QGC or Mission Planner.

Ardupilot

See here for details, but you should just need to change two parameters. For example, if using the telem1 port at baud 115200:

SERIAL1_PROTOCOL to MAVLink2 (int value 2)
SERIAL1_BAUD to 115200 (int value 9).

PX4

See here for details. The interface should be configured to enable forwarding, with MODE to CUSTOM. As an example, to use mavlink interface #2 with the TELEM2 port at baud 115200:

Set MAV_2_CONFIG to TELEM2
Reboot the drone (so the additional configuration parameters appear)
Set MAV_2_FORWARD to 1 (to enable forwarding between groundstation/pc and RDS2)
Set MAV_2_MODE to CUSTOM (to ensure no MAVLink messages are sent by the FC)
Set SER_TELEM2_BAUD to 115200 (to match the baudrate set in the RDS2 parameters)

MAVLink Interface

NOTE: If you are using A2ZQGC, all of the below is handled by the software. This section is for users implementing their own control on a ground station or companion computer. This interface information is also documented in the a2z.h header file which

Overview

Once the RDS2 is connected and parameters configured, your GCS should start getting WINCH_STATUS messages, DISTANCE_SENSOR messages, and HEARTBEAT messages from, by default, System 1 (usually the drone), Component 7 (to identify the winch). By sending MAV_CMD_DO_WINCH messages to this system+component, you can control the RDS2.

The following sections detail the following:

Information provided by the RDS2 in its WINCH_STATUS messages, including:
- Interpretation of the main fields of this message
- Details on parsing the special RDS2_STATUS field embedded in the general ‘status’ field of the message
- Interpretation of the RDS2_STATUS field above
- A note on the DISTANCE_SENSOR message that the RDS2 sends to provide information from the connected lidar sensor
The command interface allowing the user to control the RDS2, including:
- Description of the command message and its parameters
- A detailed table of the particular commands and their subcommands
A general recommendation for steps to create a realtime UI in a GCS or web interface

Parsing RDS2 Status

The message streamed from the RDS2 is of type WINCH_STATUS. The specific interpretation of the fields differs slightly from the MAVLink spec. Additionally, a single high-level RDS2 state indicator is packed into the status field. See the table below:

Field Name	Type	Units	Standard Description	RDS2 notes
time_usec	uint64_t	us	Timestamp (synced to UNIX time or since system boot).	As described (synced to system boot time)
line_length	float	m	Length of line released. NaN if unknown	As described
speed	float	m/s	Speed line is being released or retracted. Positive values if being released, negative values if being retracted, NaN if unknown	As described
tension	float	kg	Tension on the line. NaN if unknown	Tension is not directly measured. This field reports the coil current of the drive motor in amps.
voltage	float	V	Voltage of the battery supplying the winch. NaN if unknown	As described
current	float	A	Current draw from the winch. NaN if unknown	This reflects the current draw of the control board only, not including the motor.
temperature	int16_t	degC	Temperature of the motor. INT16_MAX if unknown	This reflects the temperature of the clutch servomotor
status	uint32_t		Status flags as encoded in WINCH_STATUS_FLAGS	As described. Additionally a high-level status enum is packed into the last 8 bits of this field. See table below.

The ‘status’ field does contain most of the flags in the spec, but we suggest only using the RDS2_STATUS enum packed into the last 8 bits of the field for your primary status display as they are more useful for understanding the state of the system. The code below will extract this state:

mavlink_msg_winch_status_decode(&message, &winch_status);

int rds2_state = winch_status.status >> 24;

This table shows the interpretation of this state enum:

Int Value	State Name	Description
0	ATTACHED	Package or hook is secured at the top with no line out.
1	IN_AIR	Package or hook is hanging, spool locked, in the air with some line out.
2	ON_GROUND	Package or hook is on the ground, spool locked, with line out.
3	FREEFALL	UNUSED FOR RDS2
4	BRAKING	UNUSED FOR RDS2
5	REELING_DOWN	Payload is being actively lowered.
6	REELING_UP	Payload is being actively hauled upward.
7	FREEWHEEL	The spool is unlocked and unpowered, for loading or emergency release.
8	UNUSED	UNUSED
9	DEV	Unit is performing operations for an in-development feature. UNUSED in production.

Distance Sensor messages

In addition to WINCH_STATUS messages, the RDS2 will stream DISTANCE_SENSOR measurements from its downward-facing LIDAR unit. No action is required from the user, as the RDS2 uses the lidar value directly, but it is provided as a convenience to the user so that it can be used for other purposes, and will display as expected in most standard GCS applications that show rangefinder distance to ground.

Commanding the RDS2

Since the RDS2 handles low-level functions independently, it does not use most of the parameters in the MAV_CMD_DO_WINCH. The only parameter to specify is parameter 2, “Action”, and in some cases parameter 3, “Sub-action”. See “RDS2 Action” in the next section.

Param (:Label)	Description
1: Instance	Unused (component ID is used to differentiate multiple systems)
2: Action	Action to perform. **The RDS2 does NOT use the stock WINCH_ACTION enum, see the RDS2_ACTION below.
3: Length	Sub-Action to perform. See the table below.
4: Rate	Unused
5	Empty.
6	Empty.
7	Empty.

RDS2_ACTION

Value	Command name	Description	Allowable States	Sub Commands
0	UNUSED	N/A
1	DELIVER	Convenience function: Performs a reeldown to the ground, followed automatically by a reelup. Should only be allowed when state is ATTACHED.	ATTACHED IN_AIR	0: HOOK_UP 1: PAYLOAD_UP
2	LOCK	Locks the spool, either to stop a REELUP/REELDOWN/DELIVER, or to regain hold of the package after a FREEWHEEL.	REELING_DOWN REELING_UP FREEWHEEL
3	FREEWHEEL	Disengages the clutch, allowing the spool to spin freely. Used in an emergency to release the tether and fly away.	ATTACHED IN_AIR ON_GROUND
4	REELUP	Reels the package or hook up until either it reaches the top or is manually stopped with a LOCK.	IN_AIR ON_GROUND	0: PAYLOAD_UP 1: HOOK_UP
5	REELDOWN	Reels the package or hook down until either it reaches the ground or is manually stopped with a LOCK.	ATTACHED IN_AIR ON_GROUND	0: PAYLOAD_DOWN 1: CALIBRATE_LOW 2: CALIBRATE_HIGH 3: HOOK_DOWN

User Interface Suggestions

To implement a control panel for the RDS2, we suggest a panel of buttons, one for each required RDS2_ACTION, and a readout panel to display information from the WINCH_STATUS and DISTANCE_SENSOR messages.

For the main flight view, we suggest including RDS2_STATE, line_length, speed, and current_distance (from DISTANCE_SENSOR). The other fields may be placed in a separate detail menu.

Additionally, we suggest only enabling each button if the RDS2 is in an allowable RDS2_STATE per the RDS2_ACTION table, showing the button as disabled otherwise.
